9363-LN-100
Large-Displacement Low-Frequence Vibration System
Description
WORLDWIDE
Product
Home > Product > Vibration Tester
Vibration Tester

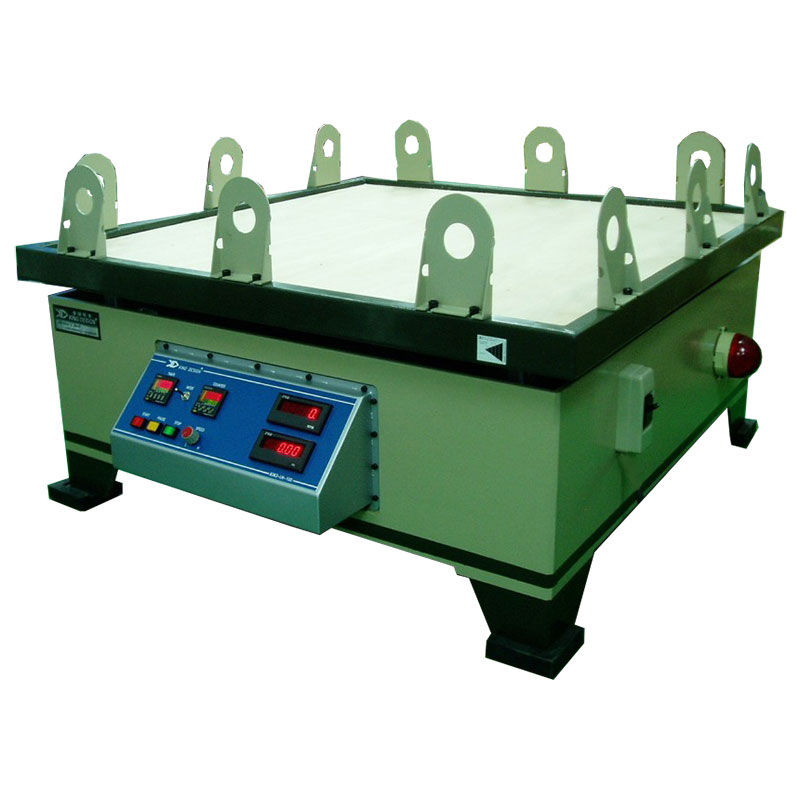

TYPE： 9363-LN-100
Features
This tester is designed to assess the damage made to product packaging and internal objects caused from transporting environment; to discover the packaging flaw and product’s early failure from a long-term cumulative vibration fatigue; avoid man-made transporting damage and improve product’s reliability and quality of delivered products. With the use of high-performance foot absorber, the resonance effect to floor caused by the bounce test may be waived; and can reduce the pile’s destruction to industrial plants. Two displays can make comparative display on both frequency and rpm at the same time; thus no need to switch in order to read these two values. The dual-control mode of time accumulator and counter can avoid human error resulting from the conversion. Easy to operate; no need for complicate training program.
9363-LN-100 complies with international ISTA and ASTM specification on packaging & transportation bouncing test.
9363-LN-100 complies with international ISTA and ASTM specification on packaging & transportation bouncing test.
Specification
| Equipment dimension | 110 (W) x 120 (D) x 65(H) cm |
|---|---|
| Weight | About 350 kg |
| Power requirement | AC 220V 1f, 15A |
| Type of movement | Driven by motor & cam |
| Platform size | 100 x 100 cm |
| Platform material | 3/4”wooden plate |
| Amplitude | 25.4 mm / 1 inch |
| Speed limit | 120 ~ 300 r.p.m |
| Frequency limit | 2.00 ~ 5.00 Hz |
| Acting time | 80min/single-cycle continuous run |
| Beating times | 14500 beat/ single-cycle continuous run |
| Noise level | <74 dB/5Hz/A weighted |
| Accuracy-holding condition | Temperature: 23°C±5°C/RH: <80%RH(non-condensed) |
