| ▲Customized order | ▲Control cabinet panel |

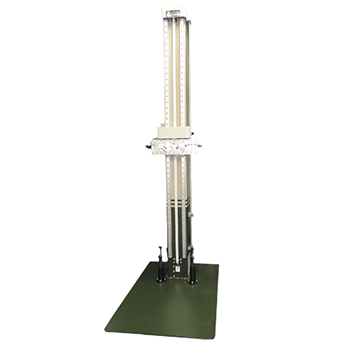

| Type | KD-208A |
|---|---|
| Products | Testing of Mobile phones, batteries, PDA, digital camera and other hand-held communications and IT product. Size: 30mm ~ 220mm; or customized special sizes. Maximum test weight: 5Kg |
| Test height | Simple-drop type: 700 ~ 2000mm; guided-drop type: 350 ~ 2000mm |
| Machine structure | Enhanced structural design: supported by multi-parallel columns; use precision screw rod to drive jig. |
| Level adjustment | Digital-type height adjustment (accuracy to 1mm) |
| Fall way |
|
| Landing means |
|
| Floor type | Steel plate; in order to comply with different norms it can install extra cement board, wood or carpet at any time. |
| Fall angle | Adjust the test direction of specimens that allow testing specimens in any direction (angle, corner line or surface). |
| Buffer device | High absorption hydraulic buffer |
| Platform Diameter(mm) | 850×1200 |
| Test Height(mm) | 35 ~ 1,800, 35 ~ 2,000, 45 ~ 2,500 |
| Max Load(kg) | 5/10 |
| Control cabinet size | 600L×500D×1060H mm |
| Control cabinet weight | < 70 kg |
| Power required | 220V/10A, single phase |
| Air pressure required | 5~7 |
| Accessories | Pressure-accumulating bottle |
